Specifying commercial athletic surfaces seems straightforward until a concrete subfloor cracks beneath a dropped deadlift. Under-specifying rubber gym flooring thickness is the most common and costly mistake in commercial weight room flooring specification.
As a specifier, you know that commercial athletic facilities demand surfaces that protect the structural slab, mitigate acoustics, and withstand relentless daily abuse. When you miscalculate the thickness, you risk structural damage and costly facility downtime.
This guide breaks down the exact thickness decision framework for commercial athletic spaces. You will learn how to specify the correct depth for each use zone, choose between rolled rubber vs. rubber tiles gym formats, and select the right material composition for high-color, highly visible environments.
The Cost of Under-Specifying Athletic Flooring
Facility directors and university recreation center managers rely on your specifications to keep their spaces operational. Specifying a thin surface for a heavy drop zone leads to immediate, cascading failures.
When you do not specify adequate thickness for commercial gym flooring, you expose the facility to several critical risks:
-
Subfloor Damage: Concrete slabs crack and degrade under repeated impact from kettlebells and hex dumbbells if the flooring lacks adequate shock absorption.
-
Acoustic Complaints: Multi-purpose athletic spaces transmit structure-borne noise. Insufficient thickness fails to dampen the sound and vibration of heavy barbell drops, disrupting adjacent spaces.
-
Equipment Wear: Without proper rebound and energy restitution, expensive commercial fitness equipment and free weights degrade much faster.
To avoid these costly issues, you must match the physical impact properties of the rubber flooring for athletic facilities directly to the specific activities occurring in each distinct zone.
Rubber Gym Flooring Thickness by Use Zone
Different training areas require vastly different specifications. Use this zone-by-zone breakdown to ensure your commercial gym flooring performs as intended.

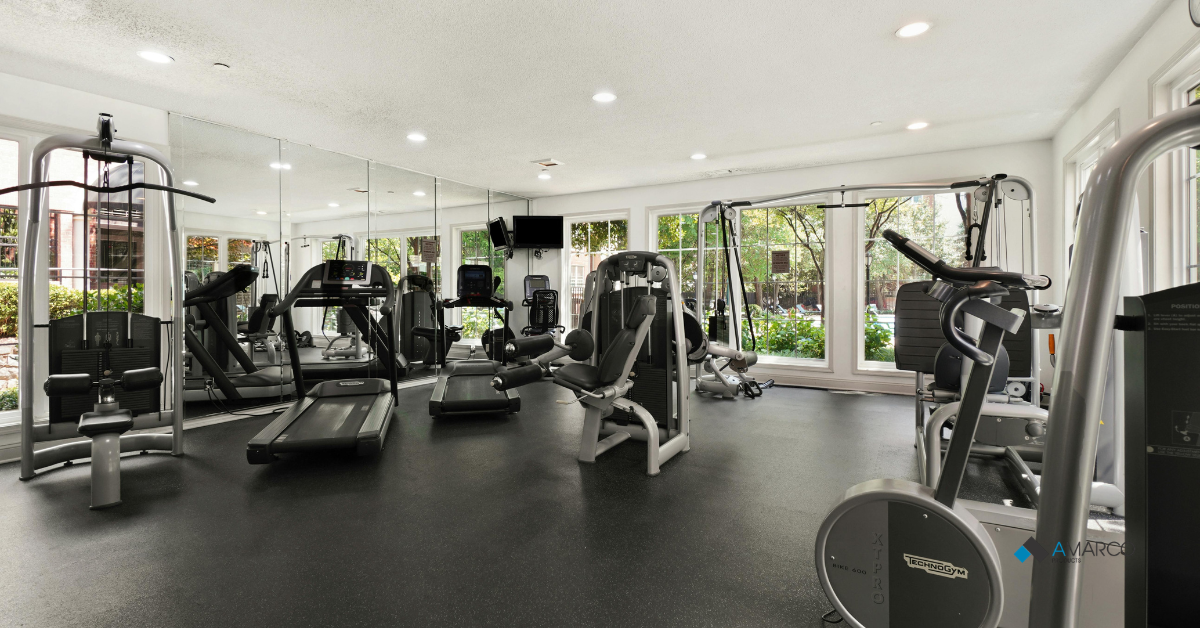

General Cardio and Selectorized Machines
For areas housing treadmills, ellipticals, and pin-loaded weight machines, impact resistance is less critical than slip resistance and subfloor protection.
Specify 1/4-inch to 3/8-inch (roughly 8mm to 10mm) urethane-bonded rubber. This depth provides adequate protection against the static weight of heavy machinery while remaining highly cost-effective for massive square footage.
Functional Training and Light Free Weights
Dumbbell areas and functional training transition zones require moderate shock absorption to handle dropped weights and high foot traffic.
Specify 3/8-inch to 1/2-inch thickness. A 3/8-inch roll is the commercial standard for most general fitness applications, offering an excellent balance of durability, acoustic control, and underfoot comfort.
CrossFit and Heavy Barbell Drops
A proper CrossFit flooring spec must account for repeated, high-impact drops from overhead lifts.
Specify 3/4-inch to 1-inch thickness. At this depth, you must transition from rolled goods to heavy-duty rubber tiles to achieve the necessary material density and force reduction.
Olympic Lifting Zones
Dedicated Olympic lifting platforms require maximum subfloor protection to mitigate extreme kinetic energy.
Specify 1-inch to 1.5-inch interlocking or dowel-aligned tiles. This extreme thickness dissipates maximum force, preventing catastrophic slab failure and protecting the athletes.
Specification Decisions: Formats and Aesthetics
Beyond thickness, you must specify the correct physical format and visual composition for your commercial project.
Rolled Rubber vs. Rubber Tiles Gym Formats
Your choice between rolls and tiles largely depends on the required thickness and the desired facility aesthetic.
-
Rolled Rubber: Ideal for cardio and functional zones requiring 1/2-inch thickness or less. Rolls create a seamless, monolithic appearance with fewer joints. They are urethane-bonded directly to the subfloor for permanent stability.
-
Rubber Tiles: Necessary for zones housing heavy weights and requiring 3/4-inch thickness or more. Tiles offer excellent modularity, allowing facility managers to rotate or replace localized high-traffic sections without tearing up the entire room.
Material Composition: Virgin vs. Recycled Rubber
Commercial rubber flooring typically blends recycled tire crumb with colored EPDM granules to achieve specific aesthetic requirements.
Re-vulcanized recycled rubber provides incredible durability and supports green building standards. Keep in mind that re-vulcanized products carry a distinct, temporary rubber odor during the initial off-gassing period, which is standard for heavy-duty commercial materials.
For highly visible university recreation centers, specify high-color EPDM surface layers bonded to a recycled base layer. This ensures brilliant color consistency and UV stability while maintaining the necessary structural integrity underneath. Always verify that your specified products are FloorScore™ certified to ensure strict indoor air quality compliance.
Securing Your Athletic Facility Floor Specification
Properly specifying commercial rubber gym flooring thickness protects the building structure, extends the life of athletic equipment, and ensures the safety of the facility users. By carefully mapping out cardio areas, functional zones, and heavy lifting platforms, you can value-engineer the exact thickness and format required for each unique space.
Whether you choose seamless urethane-bonded rolls for general fitness or heavy-duty re-vulcanized tiles for extreme drop zones, matching the technical specification to the use zone is the key to a successful, long-lasting commercial installation.
