Fusion Impact

Features & Specifications

• Applications

  Fusion Impact high-impact rubber flooring is ideally suited for:

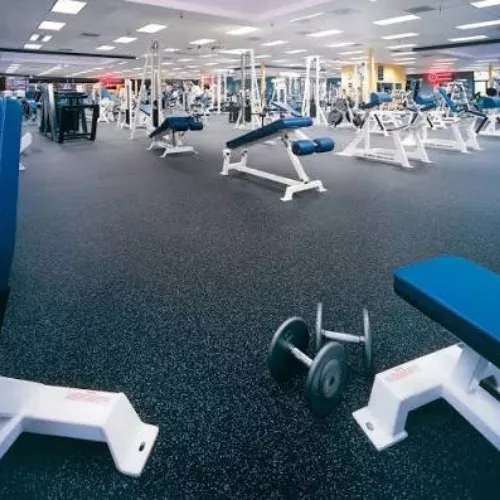

  • Commercial Fitness Centers

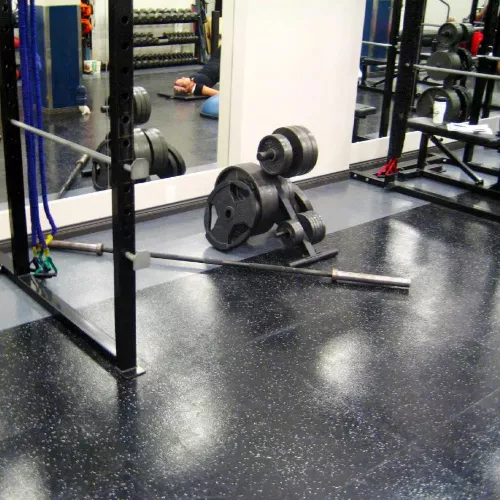

  • Weight Rooms & Strength Training Areas
  • Athletic Training Facilities
  • Physical Therapy & Rehabilitation Rooms
  • Ice Rinks

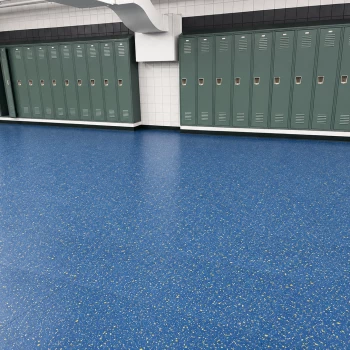

  • Locker & Dressing Rooms
  • Indoor Stadium Tunnels
  • Aerobic & Workout Studios
  • Ski Lodges
  • Pro Shops
  • Multi-Purpose Athletic Facilities
  • High-Traffic Recreation Areas

• Sizes

  Thickness: 9.5mm

  Square-Edge Tile:  24” (61cm) x 24” (61cm

  Interlocking Tile: 23” (58cm) x 23” (58cm)

• Features

  • Heavy-duty vulcanized rubber construction
  • Excellent shock and impact absorption
  • Helps reduce footfall, equipment, and rolling-traffic noise
  • Designed for demanding athletic and commercial environments
  • Resistant to spikes and skate traffic
  • Handles heavy rolling and static loads
  • Flexible and resilient underfoot

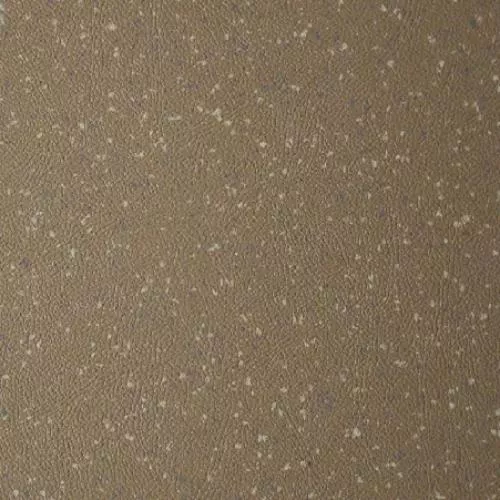

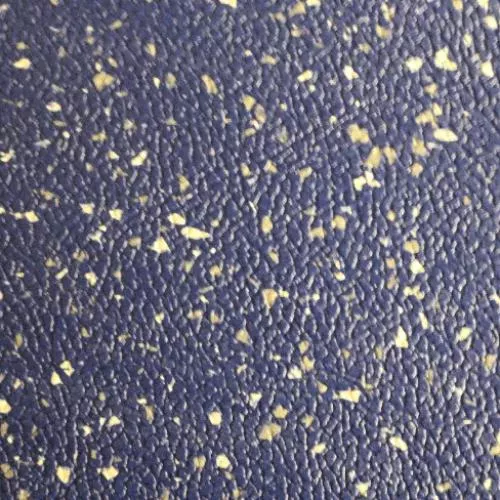

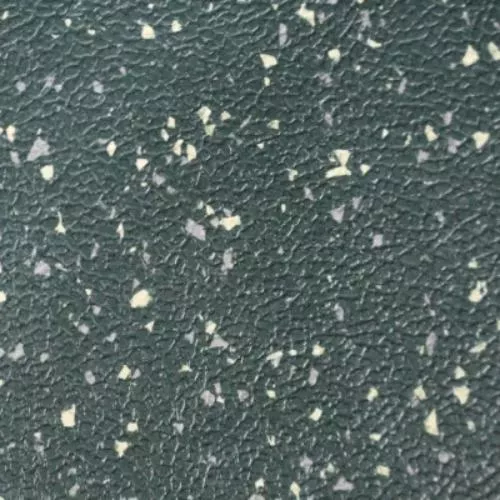

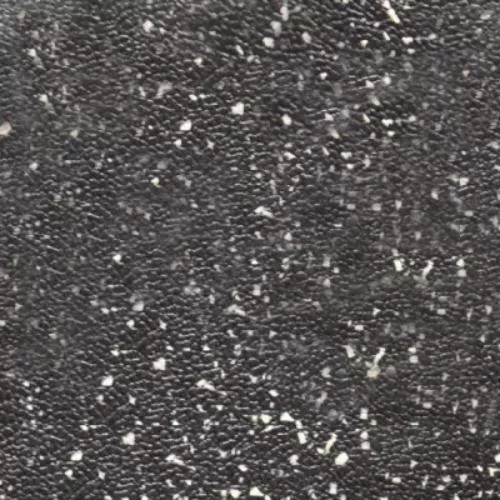

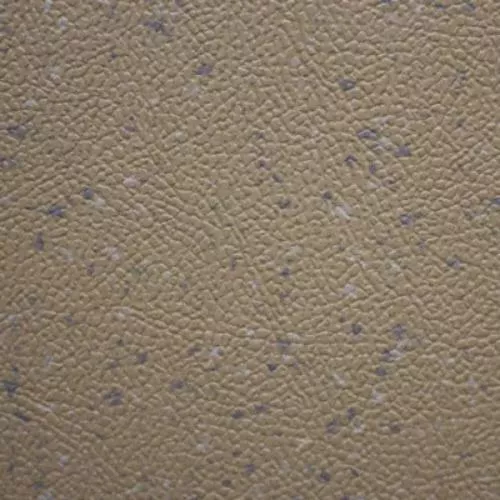

  • Durable leather-textured surface

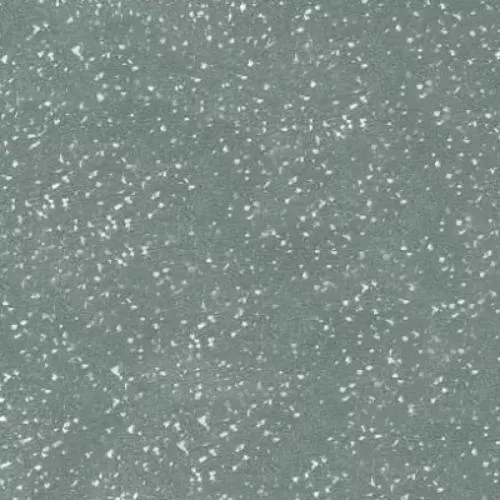

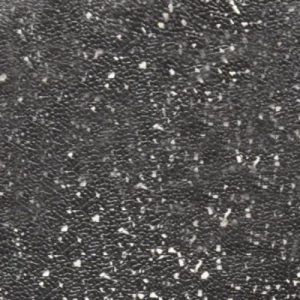

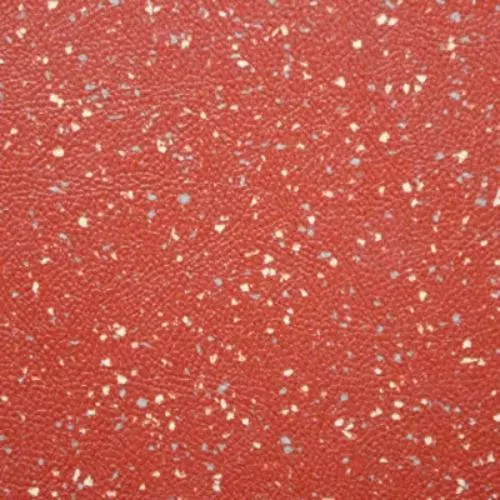

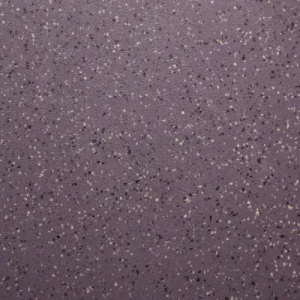

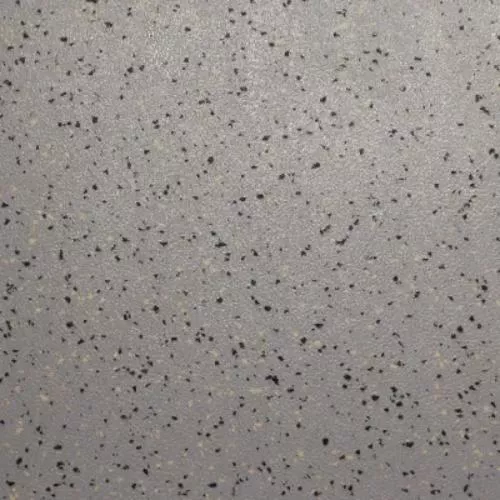

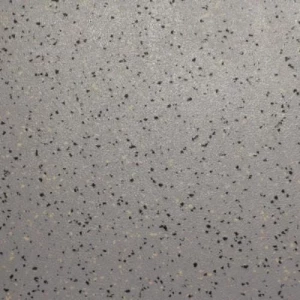

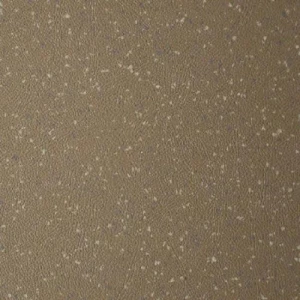

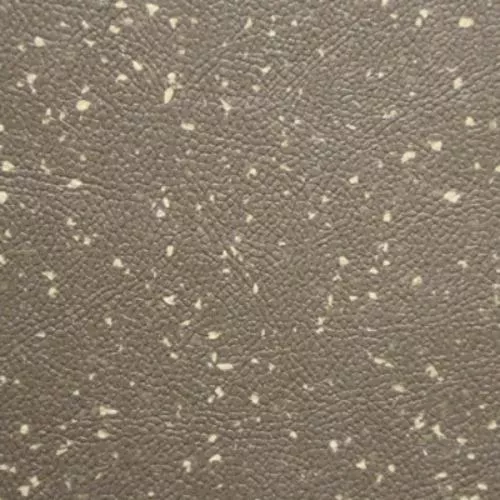

  • Speckled design with excellent visual consistency
  • No traditional dye-lot concerns
  • Available in square-edge and interlocking tile formats
  • Low-maintenance surface requiring no floor finish
  • Manufactured with more than 50% recycled content

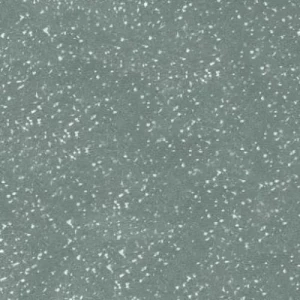

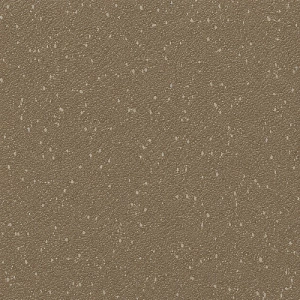

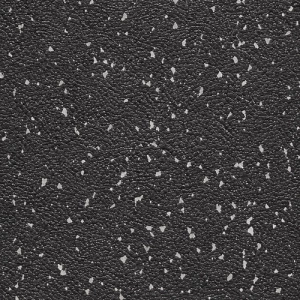

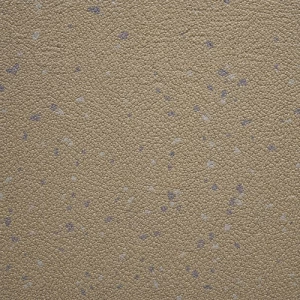

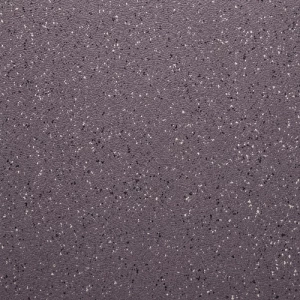

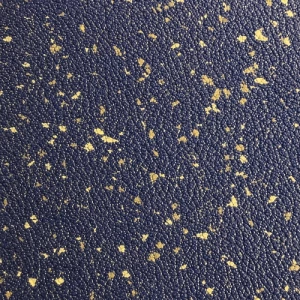

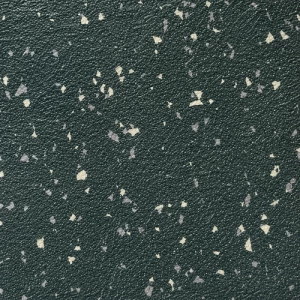

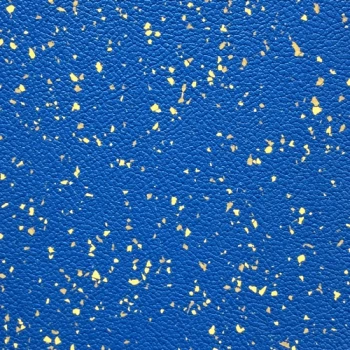

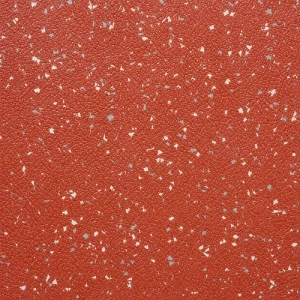

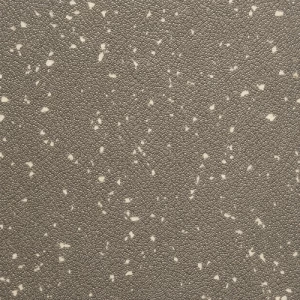

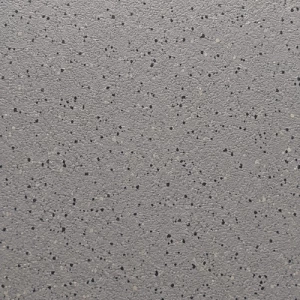

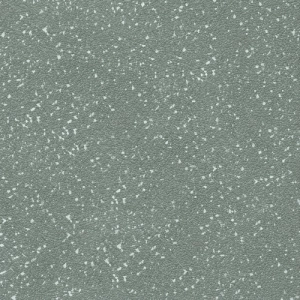

  • Multiple standard colors with custom design possibilities
  •  Straightforward installation for new construction and renovation projects

• Specifications

  Property	Standard	Value
  Elongation	ASTM D412	250%
  Tensile Strength	ASTM D412	493 psi
  Shore Hardness (Shore A)	ASTM D2240	70±5 (Wear Layer)
  Reaction to Fire	ASTM E648	Class 1
  Smoke Density (Non-Flaming)	ASTM E662	Passed
  Coefficient of Friction	ASTM D1894	0.99
  Abrasion Resistance	(H-18 Wheels, 500g, 1000 cycles)ASTM D3389	0.37g
  Chemical Resistance	ASTM F925	Compliant
  Static Load Limit	ASTM F970	≤0.003 (250 psi/ 24 hours)
  Tear Resistance	ASTM D624	Passed
  Tear Abrasion	ASTM D501	Passed
  Resistance to Heat	ASTM F1514	Compliant
  Thickness	ASTM F386	9.5 mm (0.374”)
  Thickness of Wear Layer	ASTM F410	2.3mm
  Weight	—	12.6 lbs per tile
  Wear Surface Material	—	Virgin Rubber
  Base Layer Material	—	Blended Rubber
  Tile Formats Options	—	Square-Edge, Interlocking
  Tile Dimensions	—	1 m x 1 m (3.28’ x 3.28’)
