Trident – High-Performance Vulcanized Rubber Athletic Flooring

Features & Specifications

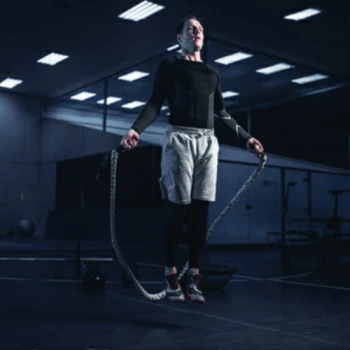

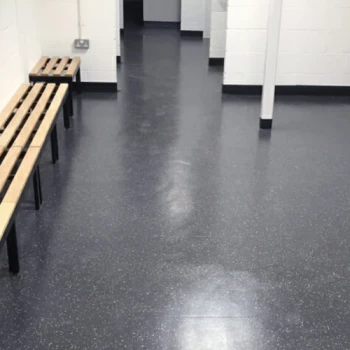

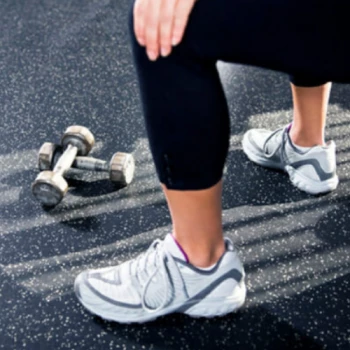

• Applications

  • Commercial Weight Rooms
  • Fitness & Training Centers
  • Collegiate and Professional Athletic Facilities
  • Strength & Conditioning Areas
  • Functional Training Spaces
  • Recreation Centers
  • High-Traffic Athletic Environments

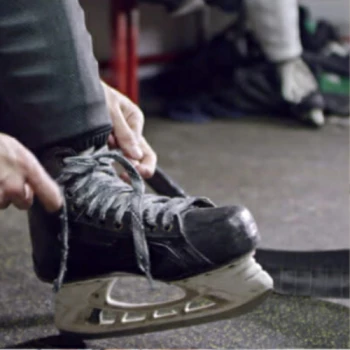

  •  Ice Rinks

• Sizes

  ROLLS

  1/8" (3.5mm)

  • Roll Size: 4' x 50'
  • Coverage: 200 sq. ft.
  • Approximate Weight: 0.90 lbs./sq. ft.

  1/4" (6mm)

  • Roll Size: 4' x 50'
  • Approximate Weight: 1.8 lbs./sq. ft.

  5/16" (8mm)

  • Roll Size: 4' x 30'
  • Coverage: 120 sq. ft.
  • Approximate Weight: 2.4 lbs./sq. ft.

  3/8" (10mm)

  • Roll Size: 4' x 30'
  • Coverage: 120 sq. ft.
  • Approximate Weight: 3.2 lbs./sq. ft.

  TILES

  Square Tile

  • Size: 3.28' x 3.28' (1m x 1m)
  • Available Thicknesses: 1/8" (3.5mm), 1/4" (6mm), 5/16" (8mm) and 3/8" (10mm)
  • Coverage: 10.75 sq. ft. per tile

  Interlocking Tile

  • Thickness: 3/8" (10mm)
  • Size: 3.1' x 3.1'
  • Coverage: 9.6 sq. ft. per tile
  • Approximate Weight: 31 lbs. per tile

• Features

  • Premium dual-layer vulcanized rubber construction
  • Dense virgin rubber wear layer for exceptional surface durability
  • Resilient base manufactured with 55% recycled rubber
  • Designed for heavy-use athletic and weight-training environments
  • Excellent resistance to cuts, dents and abrasion
  • Helps dissipate impact, shock and stress
  • Responsive surface provides excellent energy return
  • Non-porous construction helps simplify cleaning and maintenance
  • Antimicrobial and antifungal properties
  • Excellent wet and dry traction
  • Low moisture absorption
  • Custom color capabilities for design- and brand-driven installations
  • VOC compliant
  • Contributes toward LEED project goals
  • Available in rolls, square tiles and interlocking tile formats

• Specifications

  Material

  • Dual-Layer Vulcanized Rubber

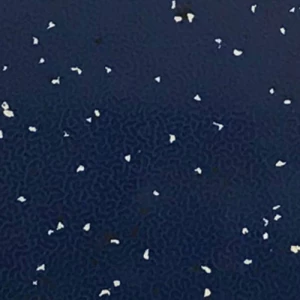

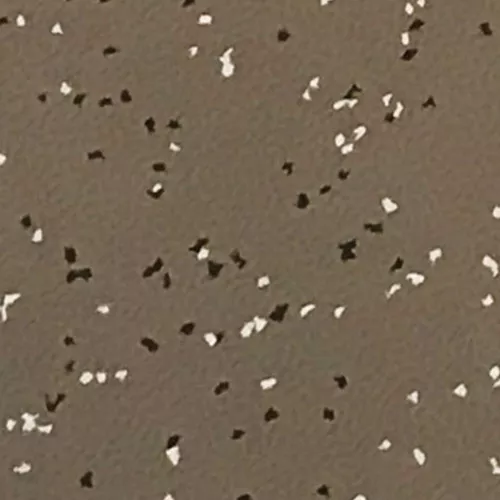

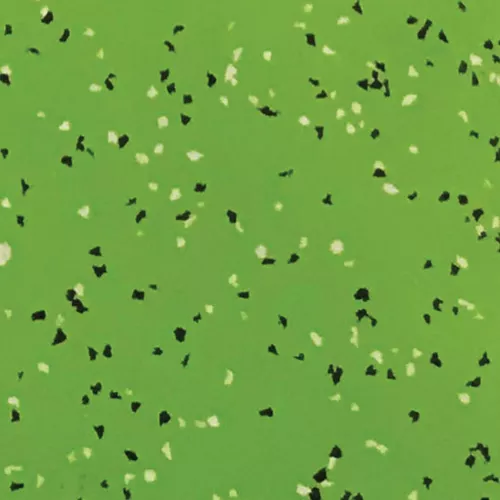

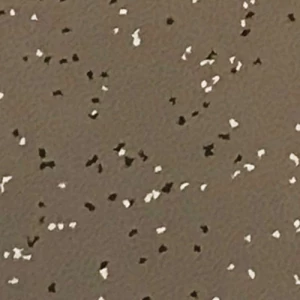

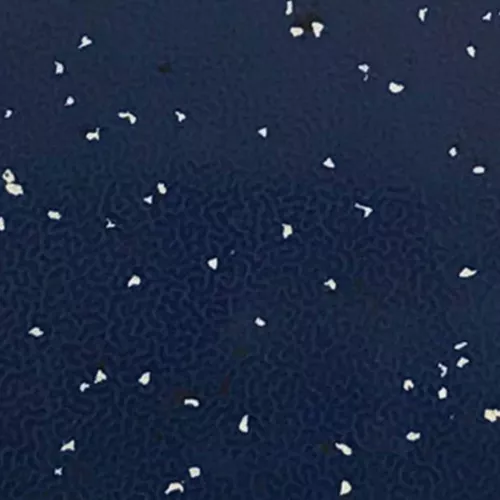

  • Wear Surface: Colored Virgin Rubber
  • Wear Layer Options: 2.4mm or 3mm
  • Base Layer: 55% Recycled Rubber

  Hardness

  • ASTM D2240: Shore A 80 ±5

  Coefficient of Friction

  • ASTM D2047: >0.8 Dry
  • ASTM C1028: >1.0 Wet/Dry

  Tensile Strength

  • ASTM D412
  • Wear Layer: 1,000 psi
  • Base Layer: 350 psi

  Elongation at Break

  • ASTM D412
  • Wear Layer: 300%
  • Base Layer: 200%

  Tear Strength

  • ASTM D624: >25 kN/m

  Static Load

  • ASTM F970-00: Passes

  Moisture Absorption

  • ASTM D570: 0.0037

  Critical Radiant Flux

  • ASTM E648 / NFPA 253: Class I, >0.45 watts/cm²

  Smoke Density

  • ASTM E662: Class 1, <450

  Additional Performance

  • Resistance to Heat – Passes
  • Chemical Resistance – Good
  • Abrasion Resistance – Passes
  • Dimensional Stability – Passes
  • Color Stability – Good
  • Antimicrobial / Antifungal Properties – Yes
  •  CA 01350 VOC Compliance – Yes
